Carbon monooxide

In this example, how to draw molecular orbital(s) is explained by taking a carbon monooxide (CO) molecule as an example.

Structural optimization

To start off, we first optimize the structure by using the quenched molecular dynamics (QMD) using the following input file (nfinp_opt):

WF_OPT    DAV
GEO_OPT   QMD
NTYP      2
NATM      2
GMAX      6.00
GMAXP     20.00
MIX_ALPHA 0.7
WIDTH     0.0010
EDELTA    1.D-09
NEG       8
FMAX      1.D-3
CELL   15.00000000  15.00000000  15.00000000  90.00000000  90.00000000  90.00000000
&ATOMIC_SPECIES
 C  12.011  pot.C_pbe1
 O  15.999  pot.O_pbe1
&END
&ATOMIC_COORDINATES CARTESIAN
      0.000000000000      0.000000000000      0.000000000000    1    1    1
      2.200000000000      0.000000000000      0.000000000000    1    1    2
&END

Run STATE and confirm that the structural optimization is successfully finished by inspecting the input file (nfuot_opt) by:

$ grep -A1 f_max nfout_opt

Then you may get the following:

   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     1    -22.28228624  0.032705  0.032674  0.13D-09  0.24D-07  0.13D-09
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     2    -22.28247708  0.025505  0.025471  0.16D-10  0.46D-07  0.16D-10
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     3    -22.28269805  0.012213  0.012175  0.64D-10  0.57D-07  0.64D-10
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     4    -22.28275321  0.004811  0.004776  0.61D-10  0.47D-07  0.61D-10
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     5    -22.28275321  0.004810  0.004770  0.61D-10  0.24D-07  0.61D-10
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     6    -22.28275706  0.003622  0.003578  0.33D-09  0.75D-07  0.33D-09
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     7    -22.28276111  0.001571  0.001536  0.91D-11  0.35D-07  0.91D-11
--
   NIT     TotalEnergy     f_max     f_rms      edel      vdel      fdel
     8    -22.28276145  0.000925  0.000888  0.11D-09  0.28D-07  0.11D-09

We then use the geom2nfinp to generate a new input file for the following up calculation with the optimized geometry as:

$ geom2nfinp -i nfinp_opt -g GEOMETRY -o nfinp_prtwfc

Make sure that the GEOMETRY file exsit in the working directory.

Wave function plot

We then modify the input file nfinp_prtwfc as:

TASK      PRTWFC
WF_OPT    DAV
NTYP      2
NATM      2
GMAX      6.00
GMAXP     20.00
MIX_ALPHA 0.7
WIDTH     0.0010
EDELTA    1.D-09
NEG       8
CELL   15.00000000  15.00000000  15.00000000  90.00000000  90.00000000  90.00000000
&ATOMIC_SPECIES
 C  12.011  pot.C_pbe1
 O  15.999  pot.O_pbe1
&END
&ATOMIC_COORDINATES CARTESIAN
      0.015722761422      0.000000149539     -0.000000142524    1    1    1
      2.188120977445      0.000000097882     -0.000000268744    1    1    2
&END
&PLOT
 IK     1
 IBS    5
 IBE    7
 FORMAT XSF
&END

You can see the the atomic coordinates are different from the original ones. In addition you can find the line:

TASK      PRTWFC

to tell the code to plot the wave function in real space and the block:

&PLOT
 IK     1
 IBS    5
 IBE    7
 FORMAT XSF
&END

to tell which orbitals to be plotted. In this case, we are going to plot 5th to 7th wave functions, which correspond to highest occupied molecular orbital (HOMO) and doubly degenerate lowest unoccupied orbitals (LUMOs) and the output format is XSF.

By executing STATE by using the above input file (nfinp_prtwfc), you may obtain the following wave functions:

nfwfn_kpt0001_band0005_re.xsf
nfwfn_kpt0001_band0005_im.xsf
nfwfn_kpt0001_band0006_re.xsf
nfwfn_kpt0001_band0006_im.xsf
nfwfn_kpt0001_band0007_re.xsf
nfwfn_kpt0001_band0007_im.xsf

The naming convention is:

nfwfn_kpt[kpoint_index]_band[band_index]_[re/im].xsf

where “re” (“im”) indicates that it is the real (imaginary) part of the wave function.

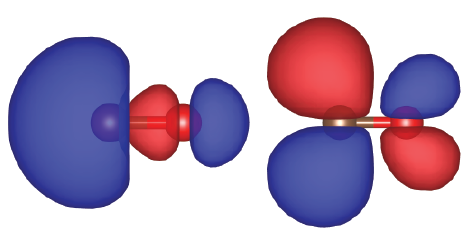

By using VESTA the real part of the wave functions for HOMO and LUMO can be visualized as:

../_images/homo%2Blumo_co.png

An energy diagram of CO can be found in the Supplementary Material of Wella et al. J. Chem. Phys. 152, 104707 (2020).
